Keybrick One is the drop-in replacement for the battery pack in the LEGO® Powered Up Hub 88009 used in many current LEGO® sets. Comes in an industrial quality 3D printed case! Includes free shipping to many locations in Europe (more info about shipping).
built-in high quality rechargeable Lithium Polymer battery pack
Two to four hours play time
can be charged while in the LEGO® Powered Up Hub
Three selectable power modes Output voltage: 6.3V / 7.8V / 9.3V
with magnetic cable tie for switching the power modes of Keybrick
automatically switches on when you switch on the LEGO® Powered Up Hub and goes to a power save mode once you stop playing
lightweight at just 50g (*)
(*) that makes Keybrick together with the 23g Hub lighter than just the battery holder with six alkaline cells!

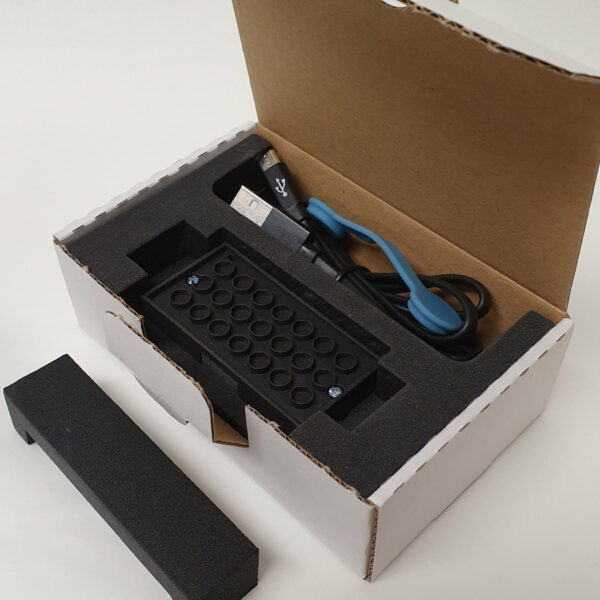

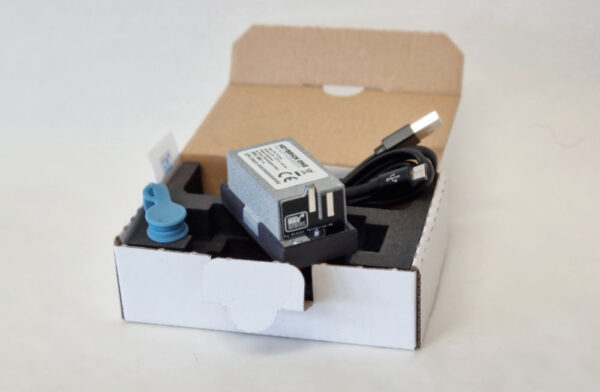

Inside the box
1x Keybrick One 1x Magentic Cable tie
Keybrick One Lite
no battery inside, needs an external USB Power Delivery compatible Powerbank (not included, should support 9V output mode)
playtime depends on your powerbank
perfect for stationary applications
just plug in another powerbank as needed
Single power mode: Output voltage: 8.4V
automatically switches on when you plug in the powerbank and swiches off, when unplugging the powerbank
very lightweight at just 20g (*), w/o powerbank
(*) that makes Keybrick together with the 23g Hub lighter than just the battery holder with six alkaline cells!
Inside the box
1x Keybrick One Lite
Specification and compatibility
Please refer to the page for specification and the user manuals for more details.
Keybricks are currently produced in small batches therefore the enclosure is 3D printed using an industry-grade PolyJet 3D printer. The material is PA12 and it has a matte finish and is grey as in the pictures above.
The bases are now dyed in blue for Keybrick One and purple for Keybrick One Lite so you can easily distinguish them.
The material supplied by HP is an engineering grade thermoplastic with excellend tensil strenght and impact resistance. HP PA12 meets USP Class I-VI and US FDA guidance for Intact Skin Surface Devices. If you’re interested in more details; here’s the link to HP’s Summary of Regulatory Compliance and Environmental Attributes for the material.
Reviews out there
We need your consent to load the content of YouTube.
If you click on this video we will play the video, load scripts on your device, store cookies and collect personal data. This enables [Google Ireland Limited, Irland] to track activities on the Internet and to display advertising in a target group-oriented manner. There is a data transfer to the USA, which does not have EU-compliant data protection. You will find further information here.
We need your consent to load the content of YouTube.
If you click on this video we will play the video, load scripts on your device, store cookies and collect personal data. This enables [Google Ireland Limited, Irland] to track activities on the Internet and to display advertising in a target group-oriented manner. There is a data transfer to the USA, which does not have EU-compliant data protection. You will find further information here.
We need your consent to load the content of YouTube.
If you click on this video we will play the video, load scripts on your device, store cookies and collect personal data. This enables [Google Ireland Limited, Irland] to track activities on the Internet and to display advertising in a target group-oriented manner. There is a data transfer to the USA, which does not have EU-compliant data protection. You will find further information here.
We need your consent to load the content of YouTube.
If you click on this video we will play the video, load scripts on your device, store cookies and collect personal data. This enables [Google Ireland Limited, Irland] to track activities on the Internet and to display advertising in a target group-oriented manner. There is a data transfer to the USA, which does not have EU-compliant data protection. You will find further information here.
Bin absolut begeistert. Habe jetzt insgesamt 5 Stück gekauft, einfach klasse. Man muss nix umbauen, einfach Akkupack rein und los gehts. Kein lästiges Batterie wechseln mehr.
Tipp: Kauft euch zusätzlich noch 15 – 20 cm usb Verlängerungskabel, so hab ich es auch gemacht. Das Verlängerungskabel kann dann im Zug verbleiben und auf der Bahn sind USB Dosen verteilt zum Aufladen (Lego Bahn mit MattzoBricks in Verbindung mit Trixbrix Motoren & Ampeln).
Habe jetzt gefühlt 3 Jahre gewartet das ich es kaufen konnte (Danke Corona), aber jeden Cent wert.
Absolut Super Produkt,liebes Keybrick Team, das habt ihr echt super gemacht !!!
I am absolutely thrilled and happy with the Keybrick. I regret that I didn’t buy more, but I couldn’t at the time. Please keep me informed when the next batch is coming so I can buy again!
Hallo Team Bewertung sehr gut Wir,Fa. Ochs Elektro haben in unserer ( privaten ) Lego-Eisenbahnanlage bereits 3 Keybrick-Akkusin Betrieb und bin begeistert.Wir haben unsere Lokomotiven mit 2 Motoren ausgestattet und haben keine Probleme.Vor allen Dingen ist das nachladen des Akkus problemlos,da wir ein Ladekabel in der Lok deponieren. Wir möchten weitere 3 Einheiten kaufen;ist es möglich,diese vorzubestellen ?? Bewertung: sehr gut
Superb product! Build quality is exceptional, as well as battery life and features. Personally I see the strongest point in the “Eco” mode as it further prolongs the battery life and is an excellent option for long play at slow to moderate speeds (e.g. as my son prefers it 🙂 ). USB charging connection on the side is also a big plus as the battery no longer needs to be removed from its casing. I’m looking forward to any new product from this Team!
Great replacement for the battery holder! A must-have for all who do not want to throw batteries after batteries away just for running some LEGO trains. Even no screwdriver needed to recharge your train!
Italiano:Prodotto ottimo unica cosa avrei preferito la usb c e la porta di ricarica dall’altro lato o sul lato perché dove messa di default mi ha costretto a riprogettare la posizione della batteria, fili e una parte del tetto del mio treno. English:Excellent product, the only thing I would have preferred was the USB C and the charging port on the other side or on the side because where it was put by default it forced me to redesign the position of the battery, wires and part of the roof of my train.
Grundsätzlich ist der Keybrick ein Hammer Produkt. ich habe 2 Lok einmal mit Keybrick und einmal Powered Up ausprobiert. Das einzige was mich stört, er geht zu schnell ins Notprogramm gegensatz dem Powered Up. Ansonsten ist er viel besser als der Powered Up. Für mich ist aber klar, das ich weiter hin mit Keybrick fahre
I loved the idea of the product from the start but was a bit hesitant because of the price at first. I decided to just try it out and see where it would lead me. The Keybrick One was delivered very fast an came in a very nice box. Instruction on the use are very clear so I could start testing after initial charging.
I have tested the Keybrick One during in my Legoworld 2024 layout and it worked very well and held up quite long. Charging it again was a breeze.
The only “criticism” I have may be the placing of the USB charging point. For me it would work better if it was opposite to the PU-port placement of to the side of the device. This way I am more flexible when recharging it and it doesn’t have to be disconnected at the PU-ports.
But overall I highly recommend the device because it gives you the flexibility of a rechargeable battery with the PU system. Although the price seems hi the quality is so as well.
My three-year old grandson insists on running the Lego trains whenever he visits, so this product was a godsend on saving on batteries and on the ease of recharge. I especially like the ability to choose from different power levels. Only regret is that I didn’t originally order two. I’m correcting that today as I submit another order.
Endlich keine Batterieverschwendung mehr! Sitzt, passt, funktioniert! Meine 6jährigen Zwillinge gehen selbst zum Handy-Ladegerät und laden den KeyBrick One wieder auf, wenn er leer ist.
We, the Staudt Technologies GmbH (Registered business address: Germany), would like to process personal information with external services. This is not necessary for the use of the website, but allows us to interact even more closely with them. If desired, please make a choice:
We, the Staudt Technologies GmbH (Registered business address: Germany), would like to process personal information with external services. This is not necessary for the use of the website, but allows us to interact even more closely with them. If desired, please make a choice:
Thorsten –
Bin absolut begeistert.
Habe jetzt insgesamt 5 Stück gekauft, einfach klasse.
Man muss nix umbauen, einfach Akkupack rein und los gehts.
Kein lästiges Batterie wechseln mehr.
Tipp:
Kauft euch zusätzlich noch 15 – 20 cm usb Verlängerungskabel, so hab ich es auch gemacht. Das Verlängerungskabel kann dann im Zug verbleiben und auf der Bahn sind USB Dosen verteilt zum Aufladen (Lego Bahn mit MattzoBricks in Verbindung mit Trixbrix Motoren & Ampeln).
Habe jetzt gefühlt 3 Jahre gewartet das ich es kaufen konnte (Danke Corona),
aber jeden Cent wert.
Absolut Super Produkt,liebes Keybrick Team, das habt ihr echt super gemacht !!!
Verified purchase. Find out more
Tim Goldfield –
Great product.
Even better battery life.
Need to buy more trains I guess.
Purchase not verified. Find out more
Michael Römhild –
Ich bin mit diesen Artikel sehr zufrieden.
Vielen Dank!
Verified purchase. Find out more
Karmen Skakic –
Hi Team
I am absolutely thrilled and happy with the Keybrick. I regret that I didn’t buy more, but I couldn’t at the time.
Please keep me informed when the next batch is coming so I can buy again!
Best regards and all the best
Karmen
Verified purchase. Find out more
Ochs Wilfried-Ochs Elektro GmbH –
Hallo Team Bewertung sehr gut
Wir,Fa. Ochs Elektro haben in unserer ( privaten ) Lego-Eisenbahnanlage bereits 3 Keybrick-Akkusin Betrieb und bin begeistert.Wir haben unsere Lokomotiven mit 2 Motoren ausgestattet und haben keine Probleme.Vor allen Dingen ist das nachladen des Akkus problemlos,da wir ein Ladekabel in der Lok deponieren.
Wir möchten weitere 3 Einheiten kaufen;ist es möglich,diese vorzubestellen ??
Bewertung: sehr gut
Verified purchase. Find out more
Lovel Jelacic –
Superb product!
Build quality is exceptional, as well as battery life and features. Personally I see the strongest point in the “Eco” mode as it further prolongs the battery life and is an excellent option for long play at slow to moderate speeds (e.g. as my son prefers it 🙂 ). USB charging connection on the side is also a big plus as the battery no longer needs to be removed from its casing.
I’m looking forward to any new product from this Team!
Verified purchase. Find out more
Ritchie Rednag –
👍👍👍
Verified purchase. Find out more
Thorsten –
Great replacement for the battery holder!
A must-have for all who do not want to throw batteries after batteries away just for running some LEGO trains. Even no screwdriver needed to recharge your train!
Verified purchase. Find out more
Augu0107 –
Italiano:Prodotto ottimo unica cosa avrei preferito la usb c e la porta di ricarica dall’altro lato o sul lato perché dove messa di default mi ha costretto a riprogettare la posizione della batteria, fili e una parte del tetto del mio treno.
English:Excellent product, the only thing I would have preferred was the USB C and the charging port on the other side or on the side because where it was put by default it forced me to redesign the position of the battery, wires and part of the roof of my train.
Purchase not verified. Find out more
Johny Lin –
the best
Purchase not verified. Find out more
Ark –
Un producto excelente. Muy buena calidad.
Verified purchase. Find out more
Mace Acki –
Grundsätzlich ist der Keybrick ein Hammer Produkt.
ich habe 2 Lok einmal mit Keybrick und einmal Powered Up ausprobiert. Das einzige was mich stört, er geht zu schnell ins Notprogramm gegensatz dem Powered Up. Ansonsten ist er viel besser als der Powered Up. Für mich ist aber klar, das ich weiter hin mit Keybrick fahre
Verified purchase. Find out more
Wim Hamer –
Very good. No batteries any more.
Verified purchase. Find out more
Joost Slager (Woudenbrick) –
I loved the idea of the product from the start but was a bit hesitant because of the price at first. I decided to just try it out and see where it would lead me. The Keybrick One was delivered very fast an came in a very nice box. Instruction on the use are very clear so I could start testing after initial charging.
I have tested the Keybrick One during in my Legoworld 2024 layout and it worked very well and held up quite long. Charging it again was a breeze.
The only “criticism” I have may be the placing of the USB charging point. For me it would work better if it was opposite to the PU-port placement of to the side of the device. This way I am more flexible when recharging it and it doesn’t have to be disconnected at the PU-ports.
But overall I highly recommend the device because it gives you the flexibility of a rechargeable battery with the PU system. Although the price seems hi the quality is so as well.
Verified purchase. Find out more
James Miller –
My three-year old grandson insists on running the Lego trains whenever he visits, so this product was a godsend on saving on batteries and on the ease of recharge. I especially like the ability to choose from different power levels. Only regret is that I didn’t originally order two. I’m correcting that today as I submit another order.
Verified purchase. Find out more
Markus –
Endlich keine Batterieverschwendung mehr! Sitzt, passt, funktioniert! Meine 6jährigen Zwillinge gehen selbst zum Handy-Ladegerät und laden den KeyBrick One wieder auf, wenn er leer ist.
Verified purchase. Find out more
